Friday, 18 August 2017

My baby boy in the car

Now the car is quite heavy its a 2 person push from my garage across the road to my drive where I prefer to work on it. I got my wife to help today and she brought over Oliver - my 6 week old baby boy.  He hitched a ride in the boot while we pushed the car - can't wait to take him for a drive!



Fuel system

I made a start on the fuel system (before being cut short due to an unexpected storm).  I removed the long metal pipe that comes as standard on the zetec engine and fitted the new modified version from GBS.

All I need to do now is connect that to the high pressure pipe, the outlet of the fuel rail to the swirl pot and thats the fuel done.  So close to being able to start her up!









Cooling system finished

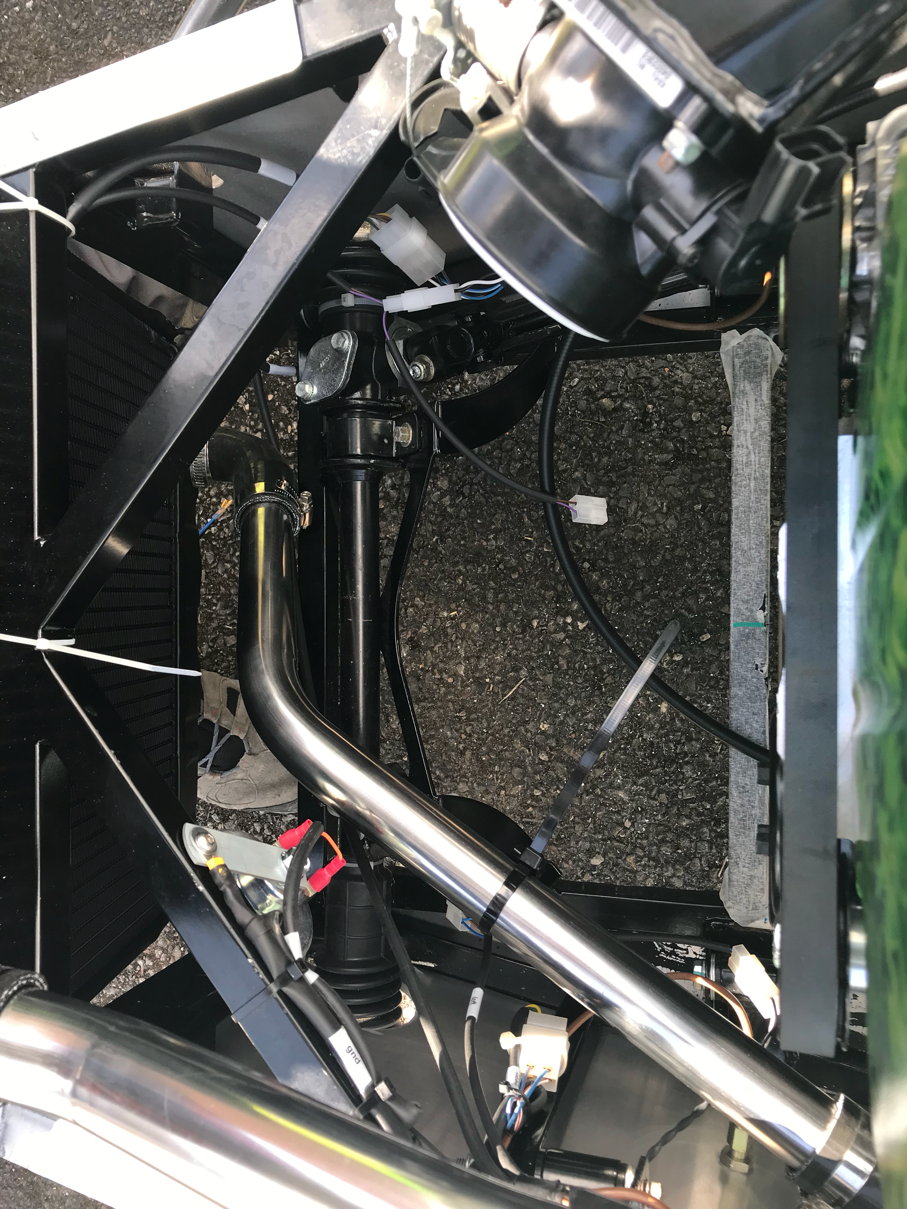

Today after a bit of advice from GBS, I was able to finish the cooling system.  All of the silicone pipes need cutting down and so does the extra long top Stainless steel hose. I set about cutting everything down and then fitted it all before sealing with the supplied brackets.  To support the length of the bottom bracket, there is a small metal fixing that needs fitting under the steering mounting bracket.  Annoying that I had to take it off, but needs must.  It then attaches to the cooling pipe using a cable tie.

Once everything was plumbed in, i filled it with water to ensure there were no leaks - there weren't! When I was happy, I drained the water and its now ready to fill with coolant.










Cooling System

One of the last big jobs is the cooling system - its really getting close to being finished now! After a bit of research it all seems straight forwards. Firstly was to install the new thermostat housing which houses 2 sensors - 1 for the instruments and the other for the ECU. This was a straight bolt on job but with paper gaskets between the joins. I also sanded them as flat as possible using a 300grit and paper to ensure they were perfectly flat after being powder coated.  Finally before assembling I added a small dab of gasket sealant.






Next I cut off the two additional mounting tabs from the radiator. These aren’t needed on the Zero and hinder it mounting properly so were removed, filed, primed and given a coat of Matt black paint. If you didn’t know they were there you never would! Very happy with this job.





Next thing I did was to mount the radiator and fan into the car, straight forwards with 4 bolts but not sure about the bolts through the fan resting on the radiator. I’ve put a few layers of duck tape behind in the interim but will need to revisit this I think.

Before..


The tape I mentioned....

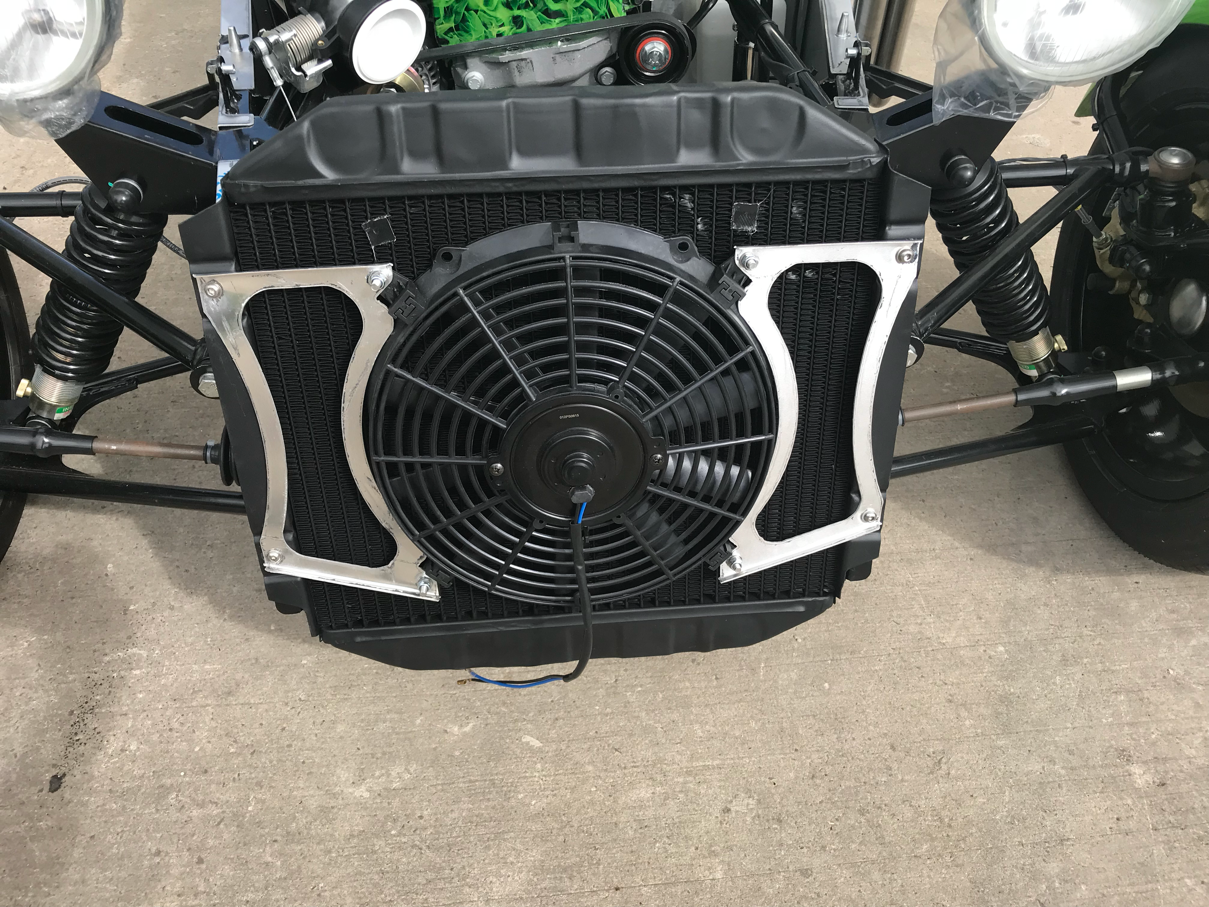

And after. I was going to paint the aluminium support brackets but they give a nice shape through the grille.



Final job for the day was the stainless steel overflow tank and a few silicone pipes.





I couldn’t do anymore as I’ve been sent the wrong pipe for here so called it a day.


Cooling re-visited

I wasn't happy with the fitting of the fan on the radiator, as I mentioned last time as the screws were clipping the radiator and denting it.  My temporary fix was a few strips of duck tape as you can see in one of the following pictures, it didn't look great and there must be another way around it.  I took it apart again today and turned the bolts around, once they are tight they pull the screw head into the plastic bracket and the problem is solved.  I also turned the brackets upside down so it fits much better.









Sunday, 13 August 2017

Engine back out

I had a tiny leak from the new sump I’d fitted so needed to remove it and refit. So out with the engine / gearbox combo, removed the sump and I could immediately see what was wrong, I’d clearly caught the gasket as I was installing it which knocked it out of alignment - causing the drip.


5 hours work, absolutely no forwards progress but the leak is now fixed.

How it started the day


Engine out and sump off





And the finished car at the end of the day (not a finished car but getting there now)



Exhaust manifold

A quick job for this afternoon. I removed the existing manifold and added the GBS manifold so I could make a template for cutting the hole in the bonnet.

Once I’d marked everything up and cut the hole, I then vinyl wrapped the bonnet in the same green as the scuttle. It came up very nicely.
